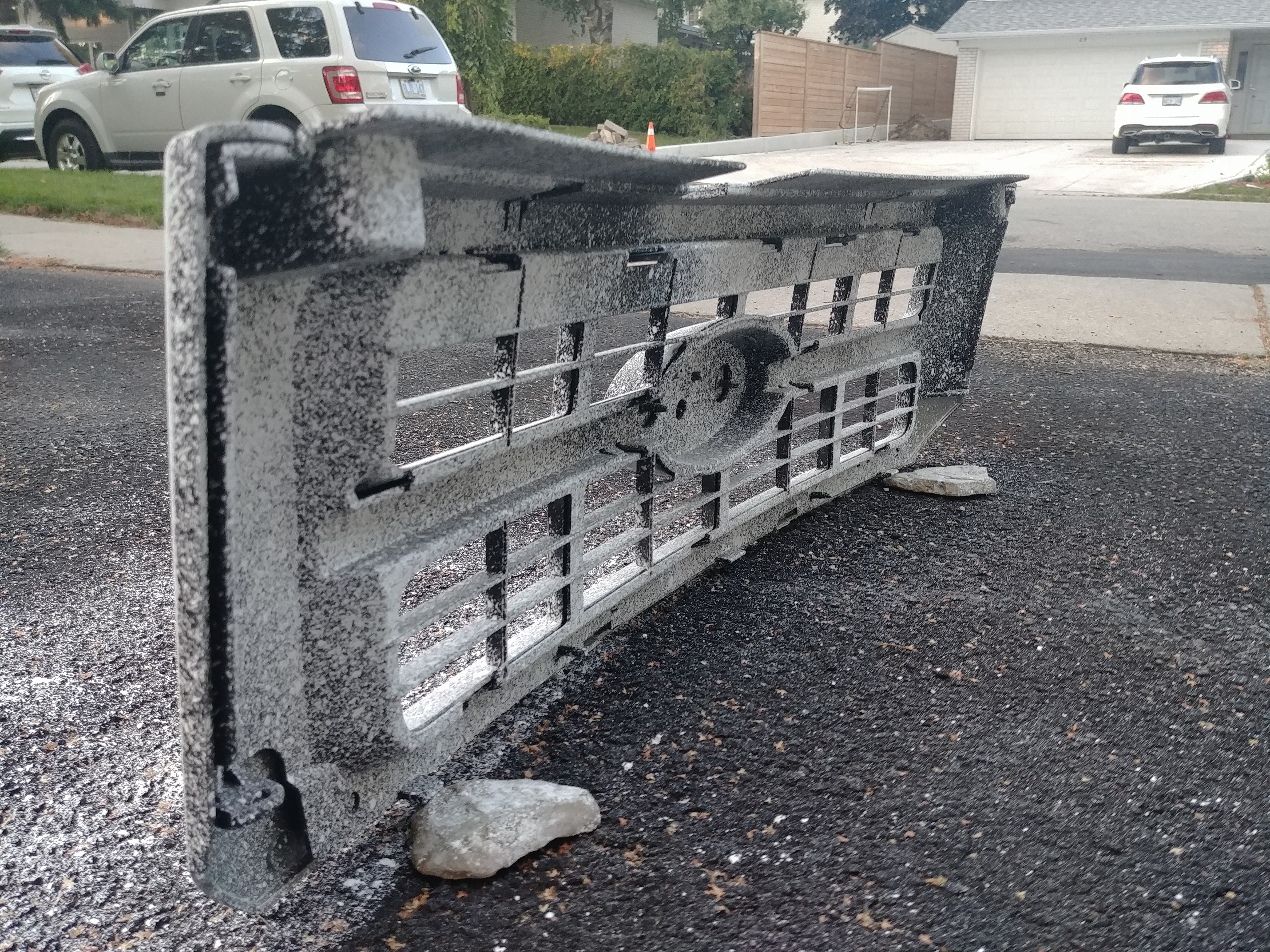

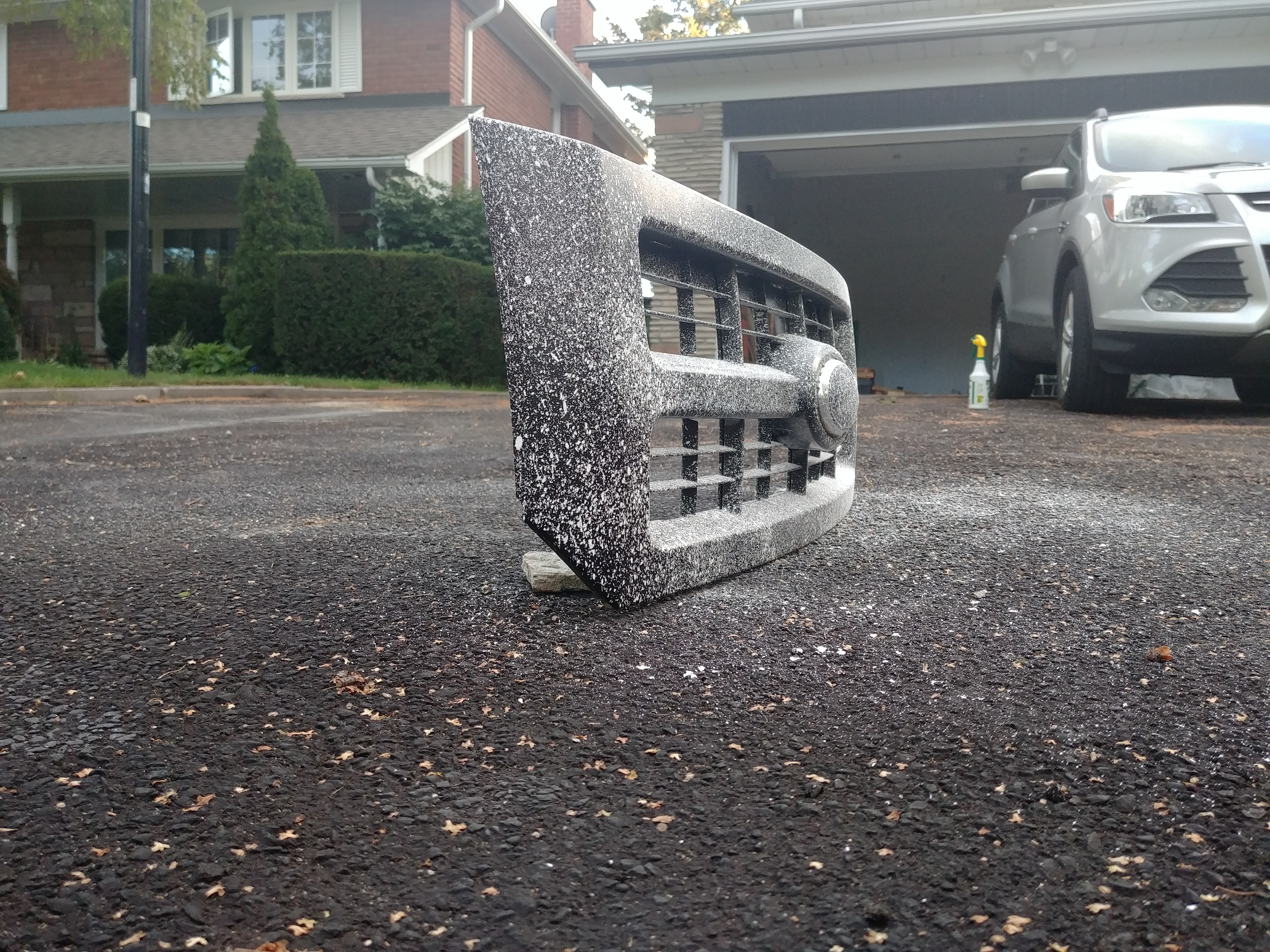

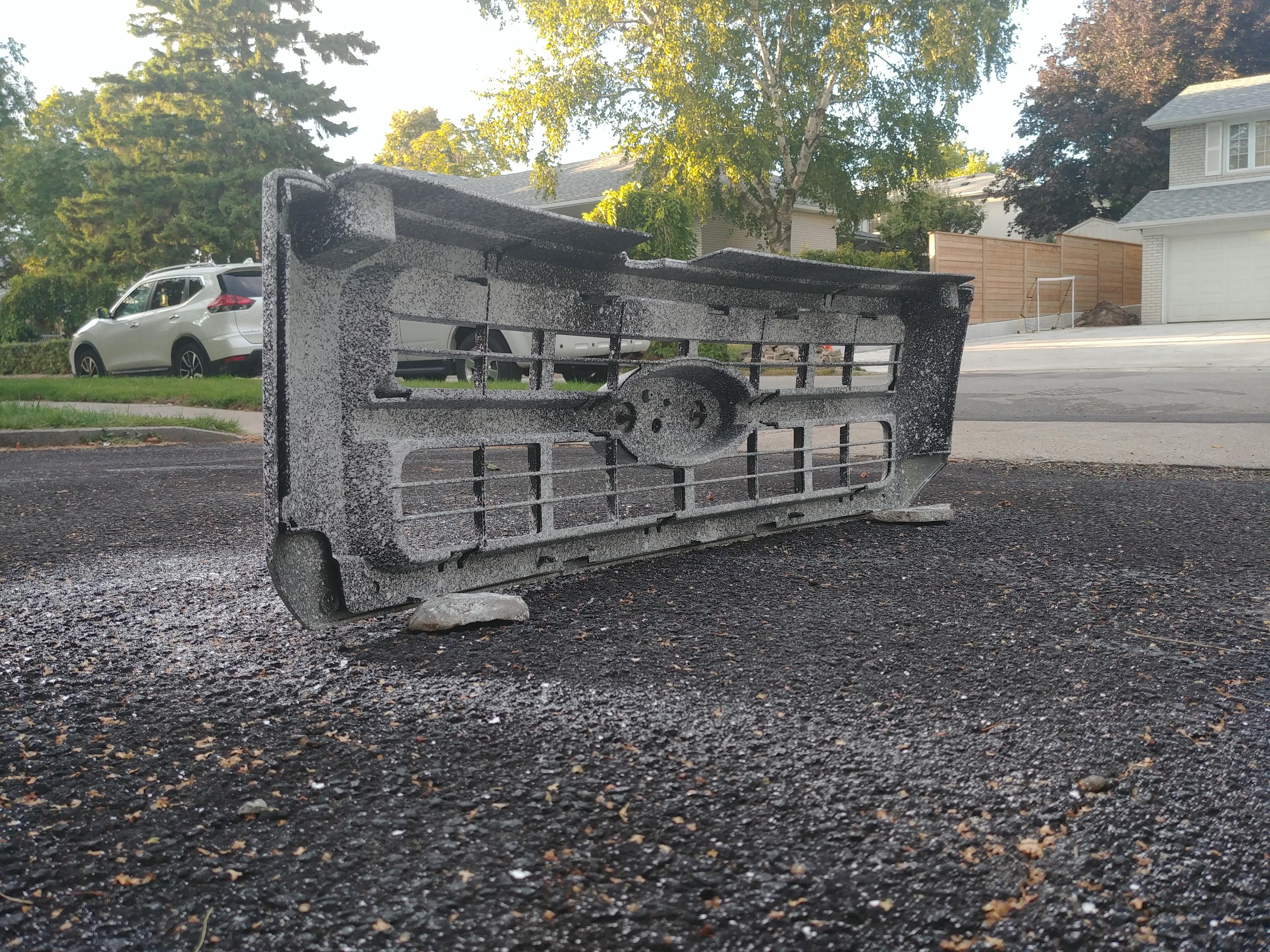

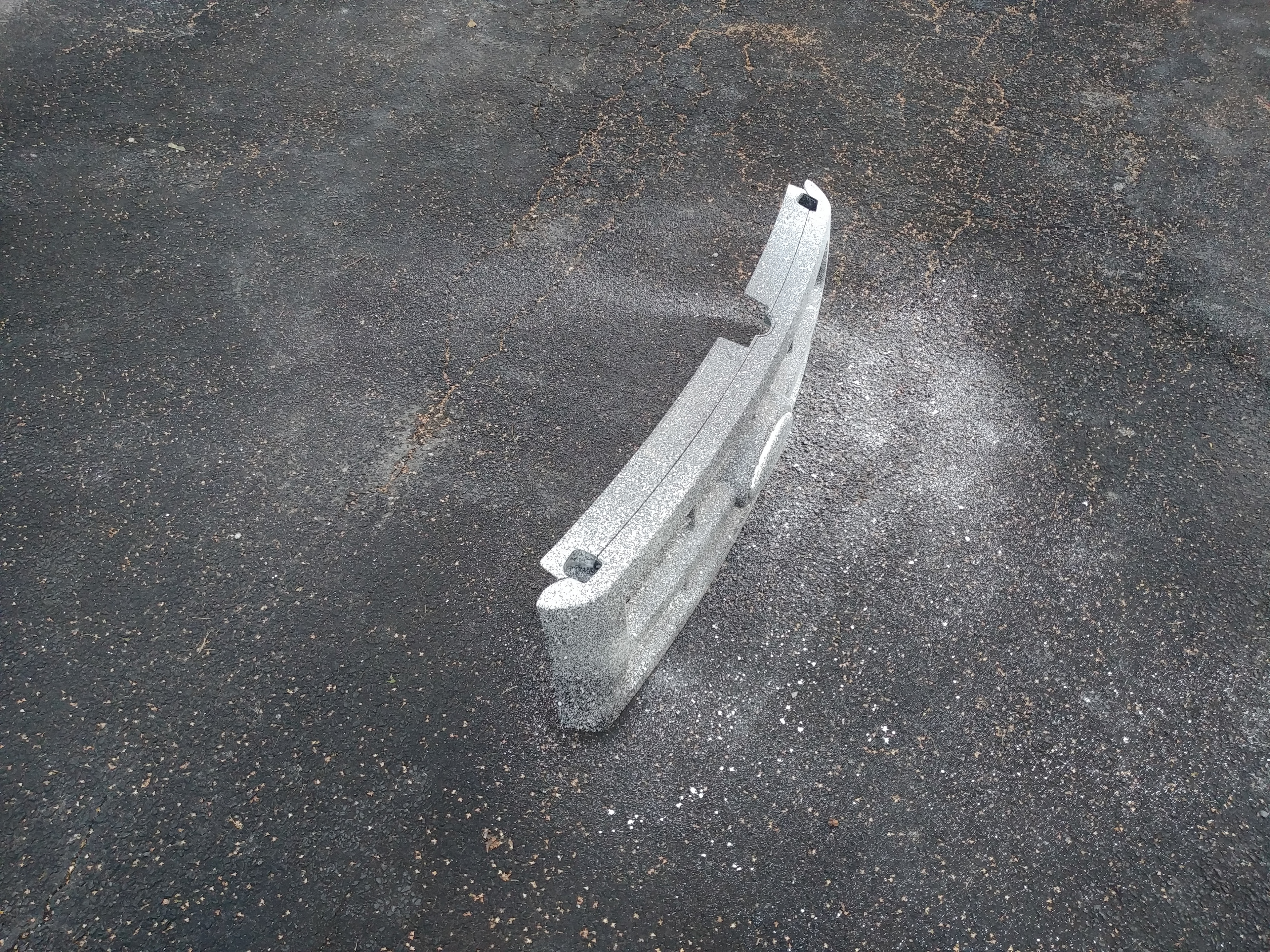

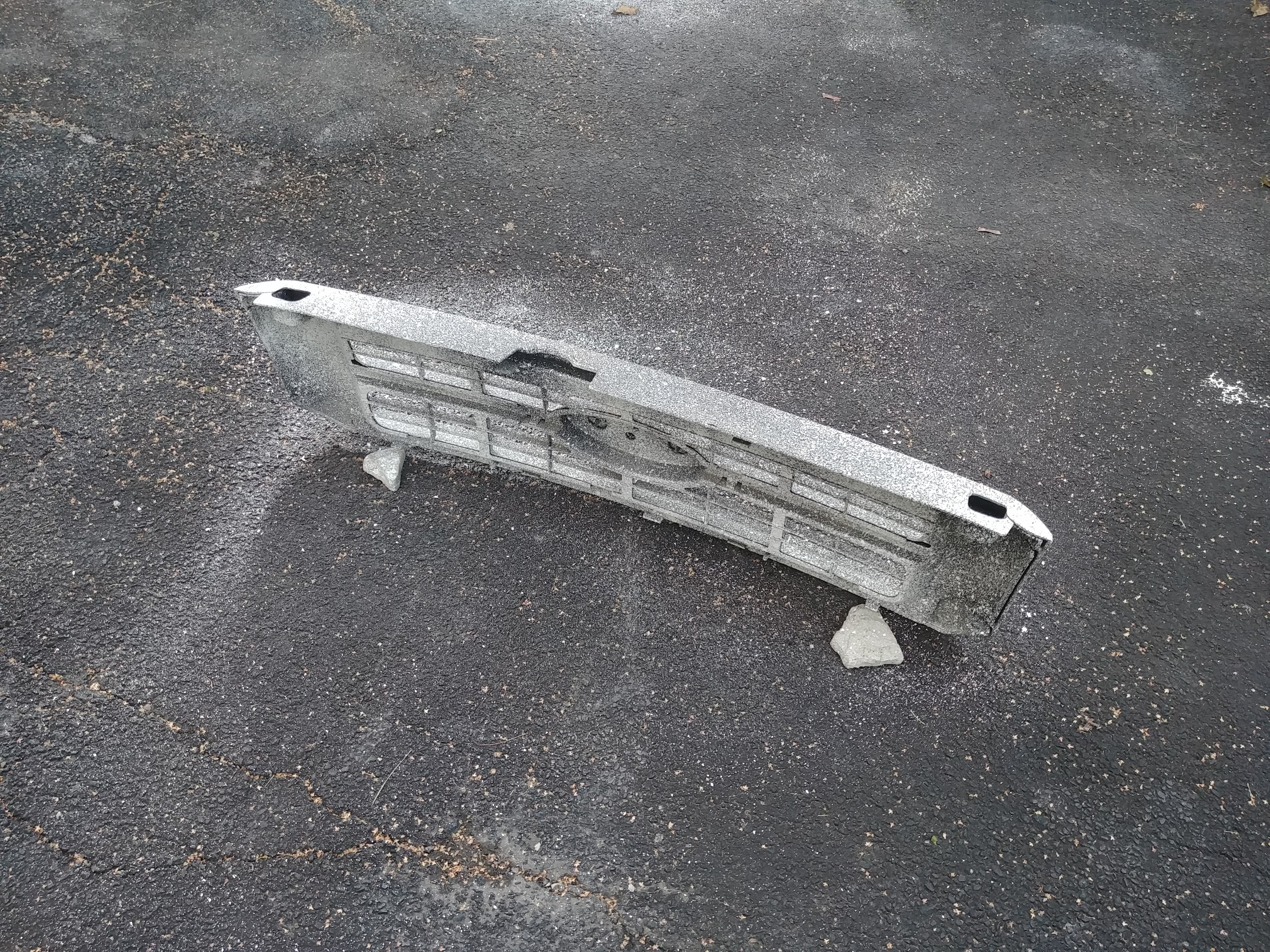

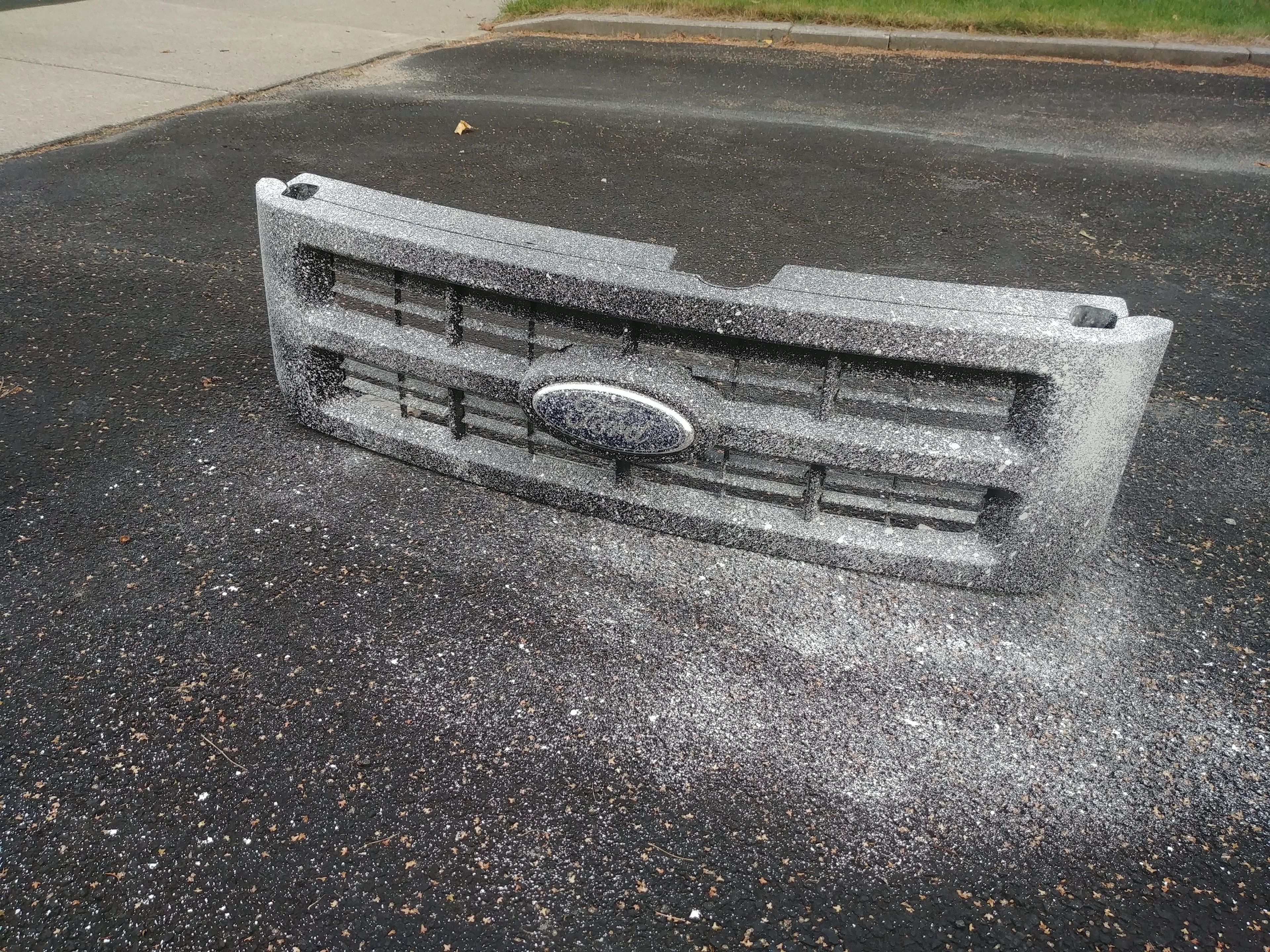

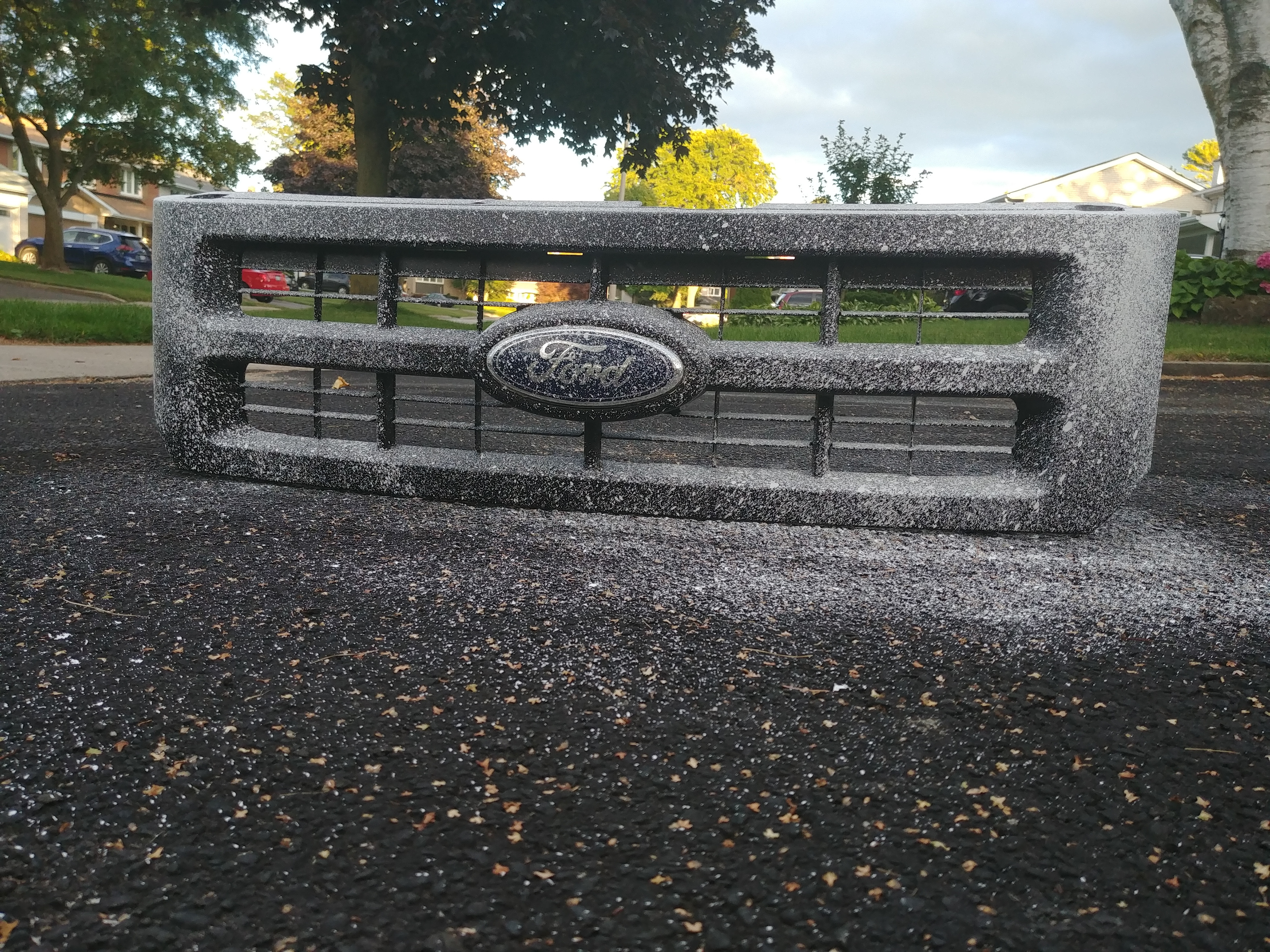

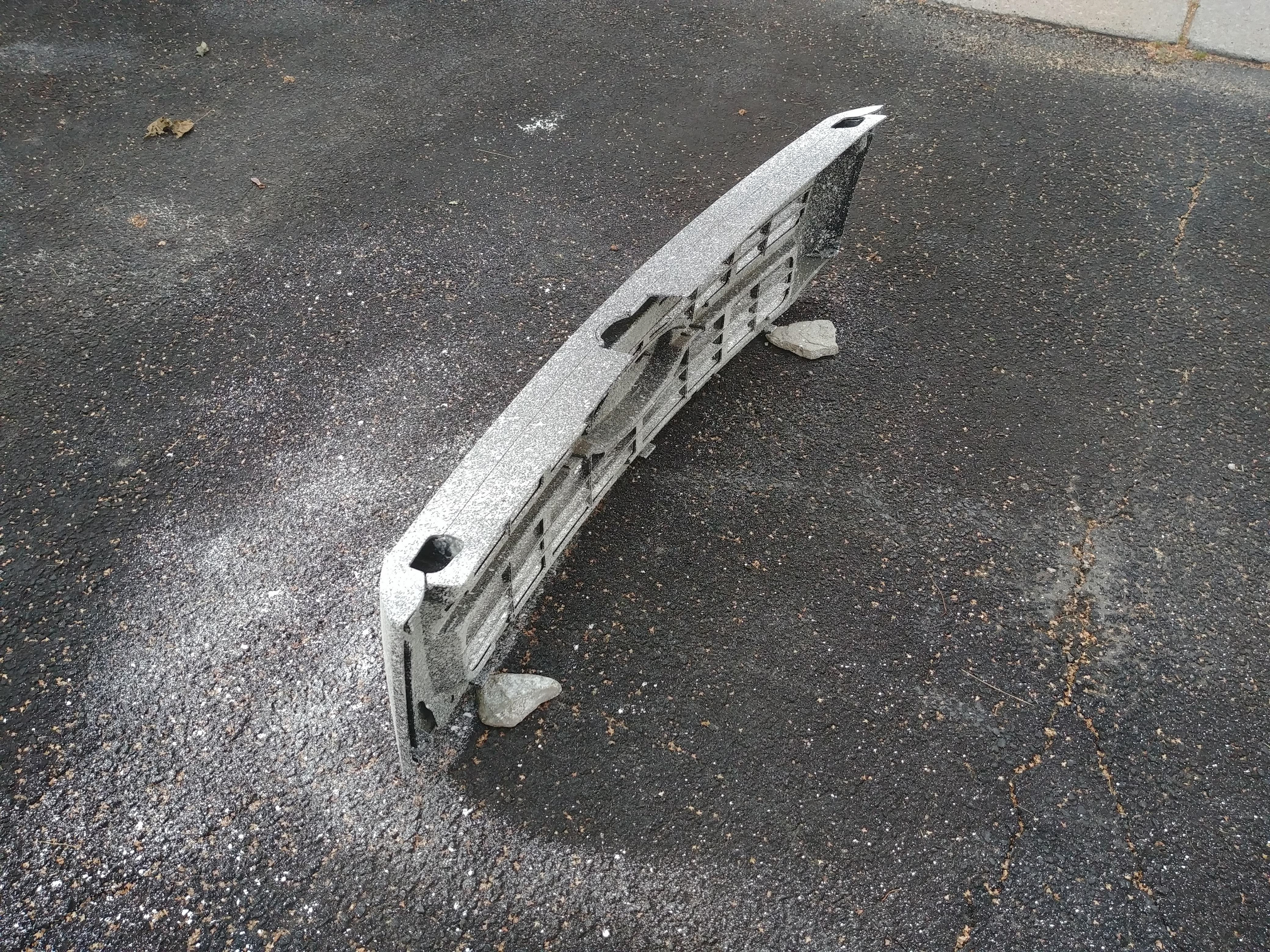

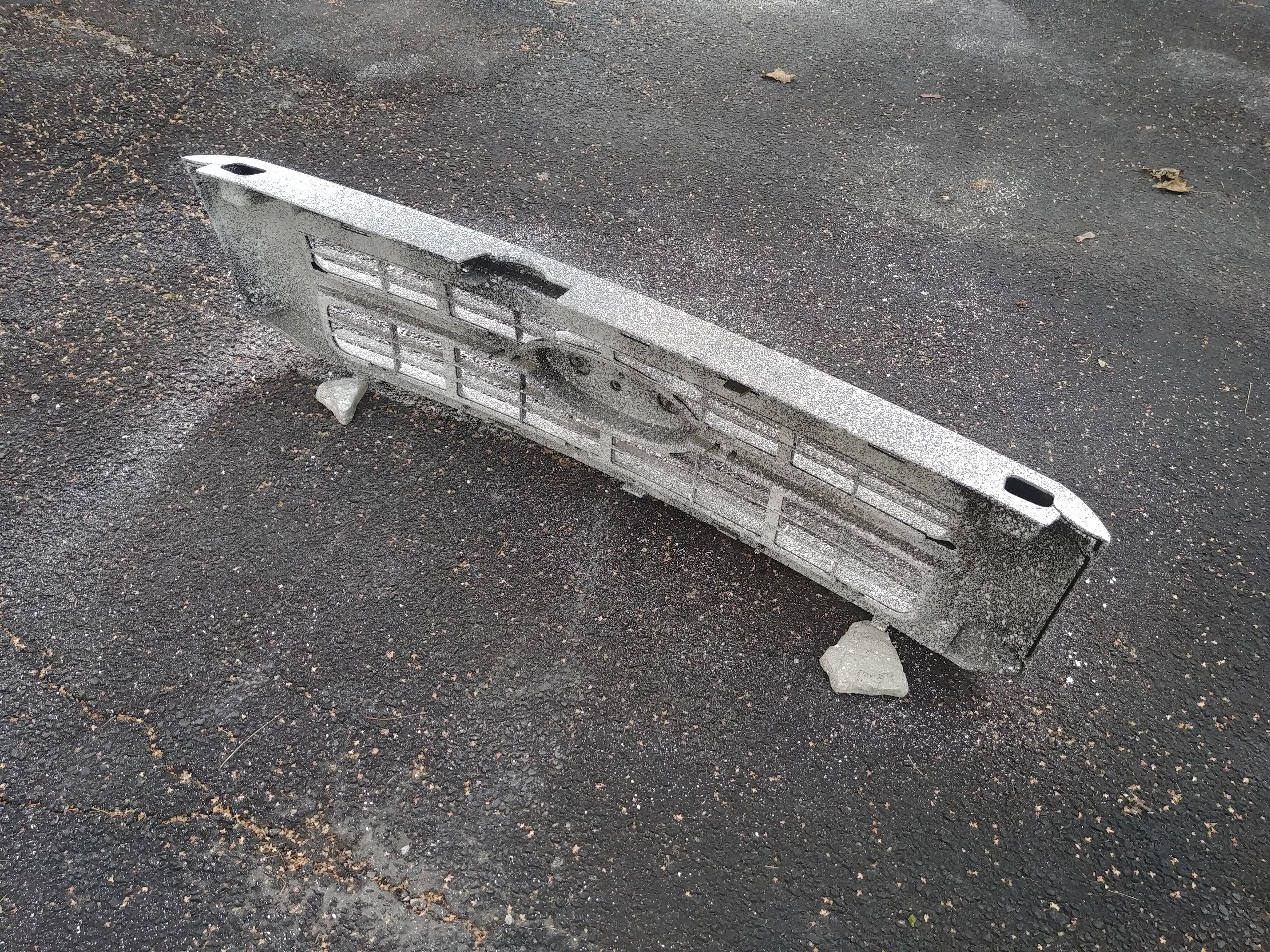

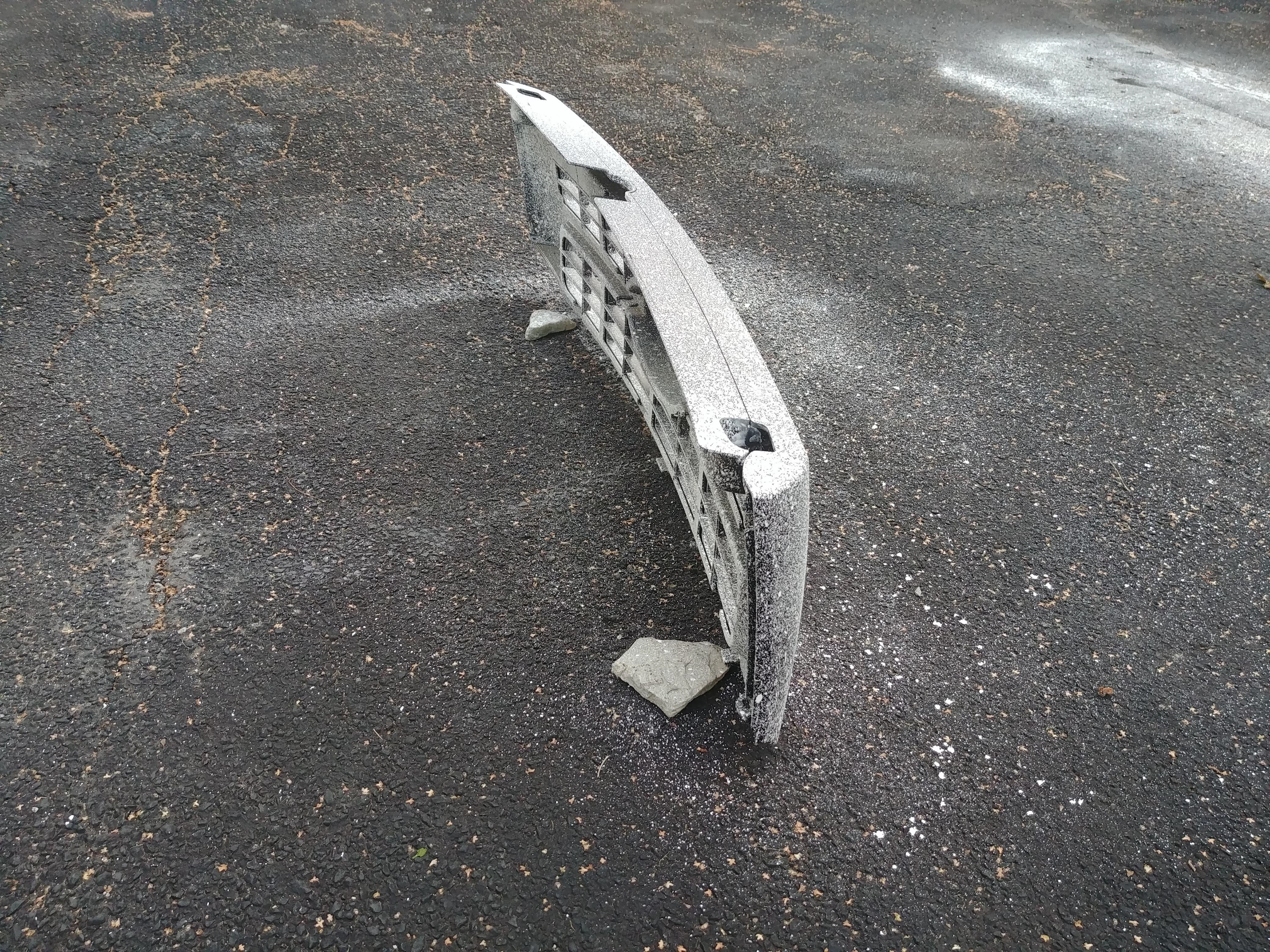

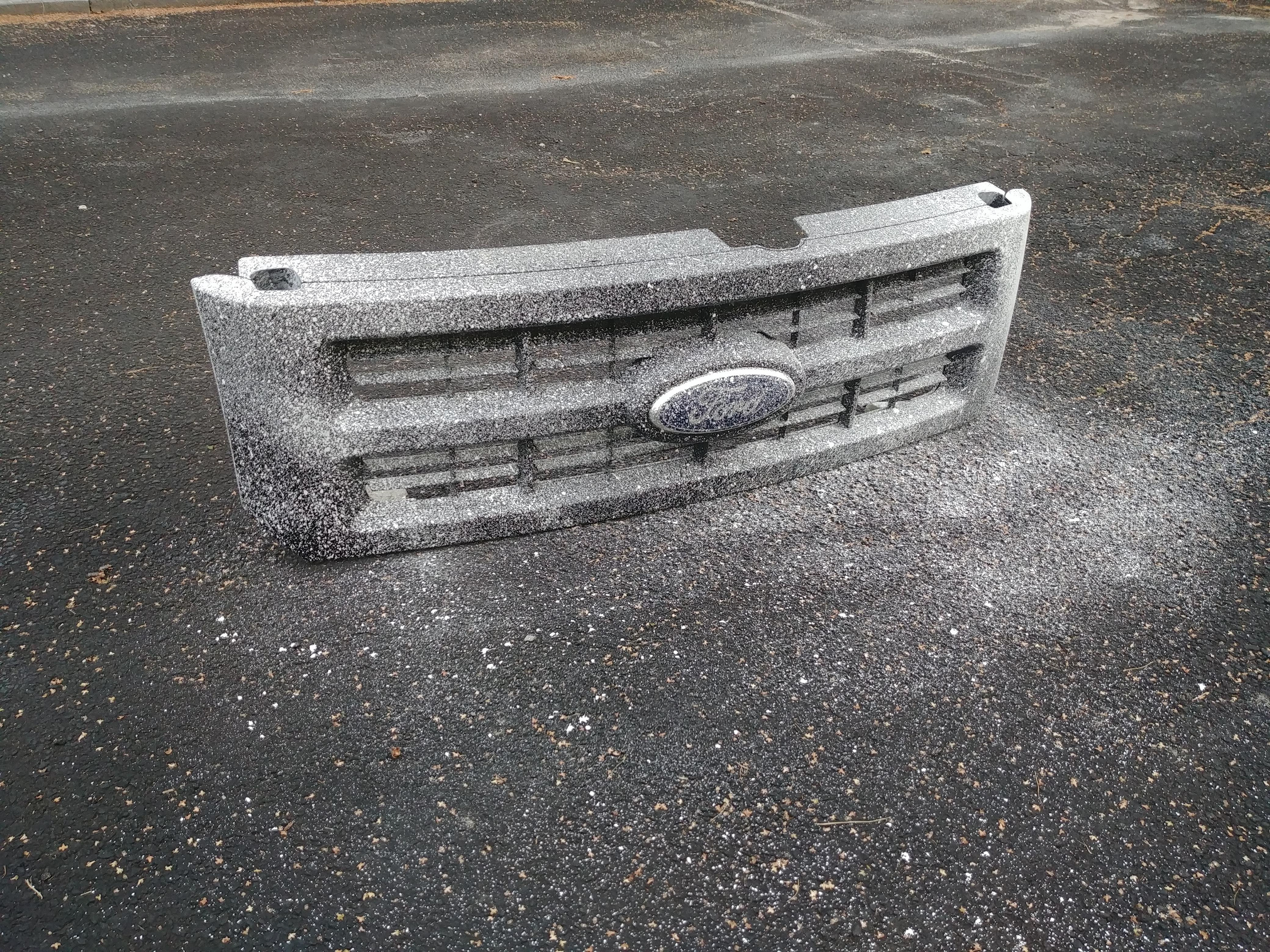

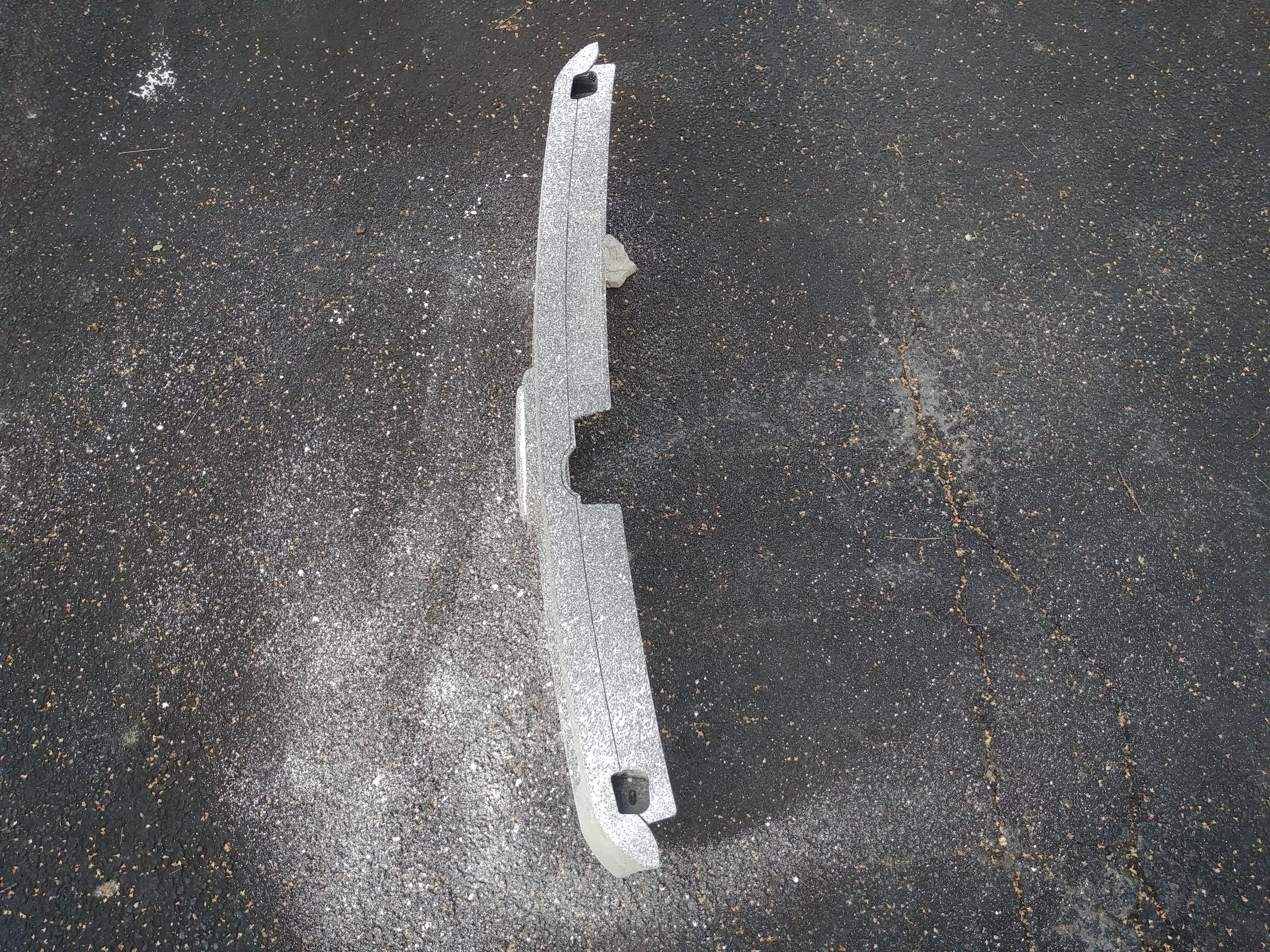

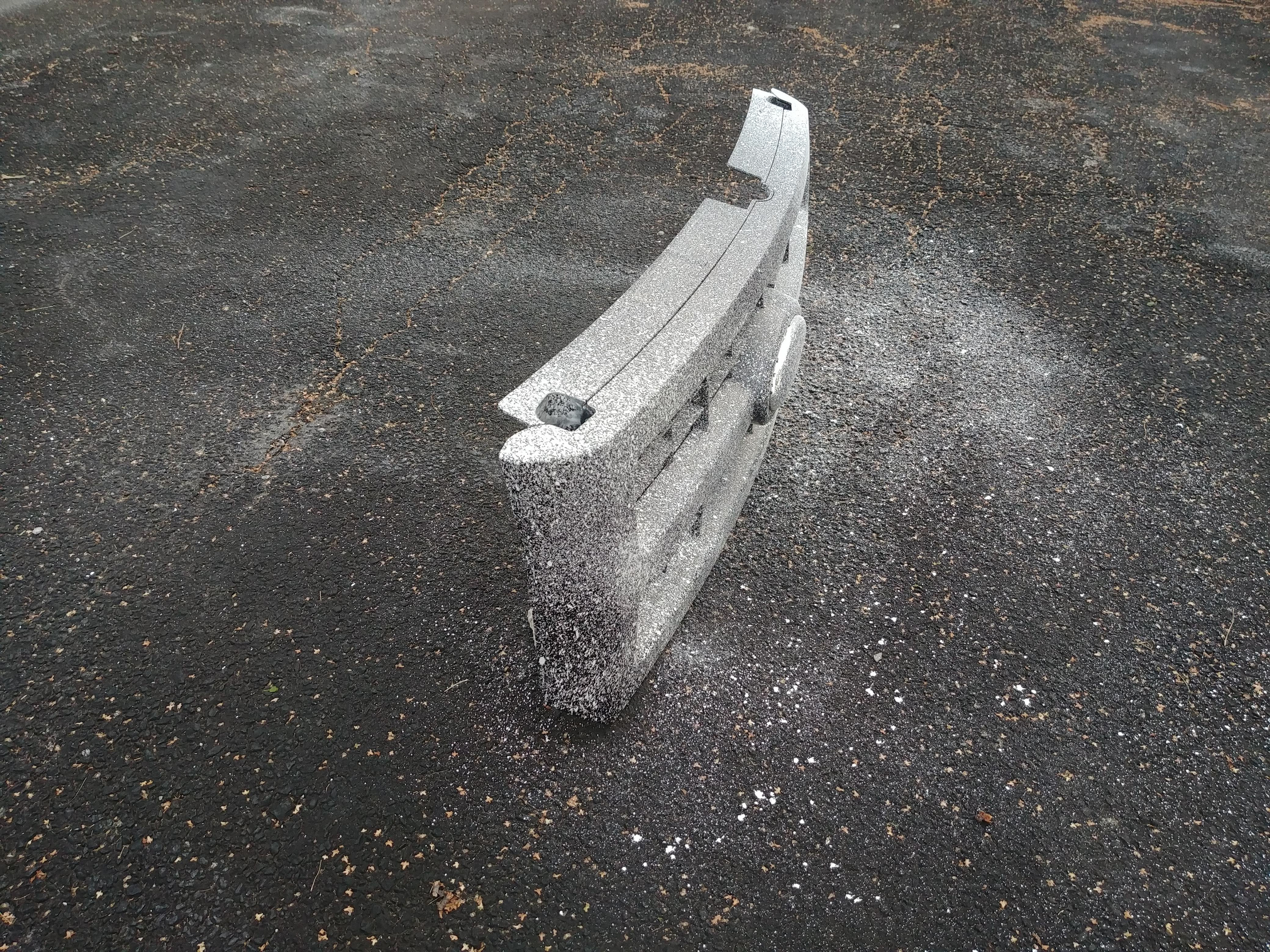

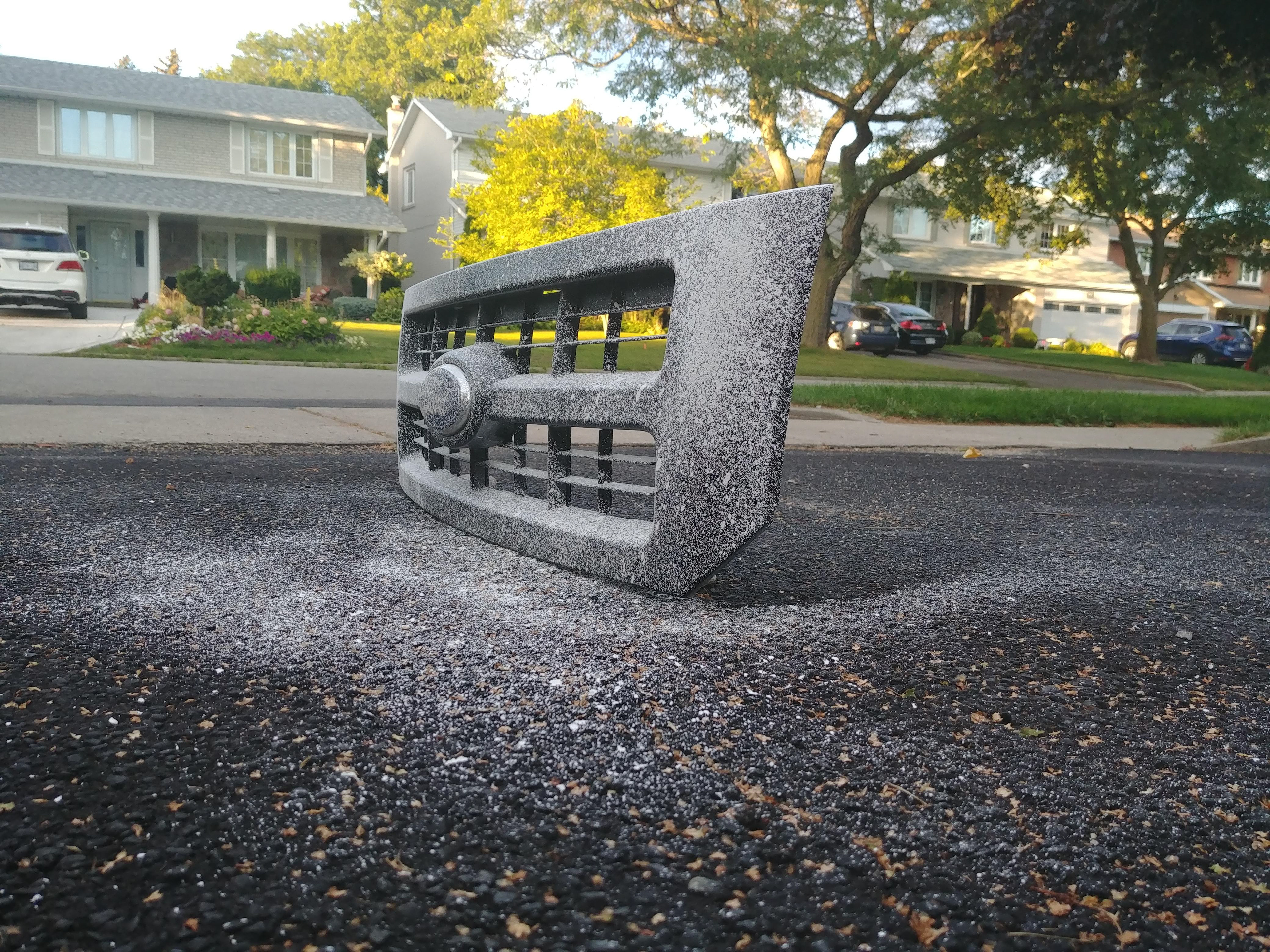

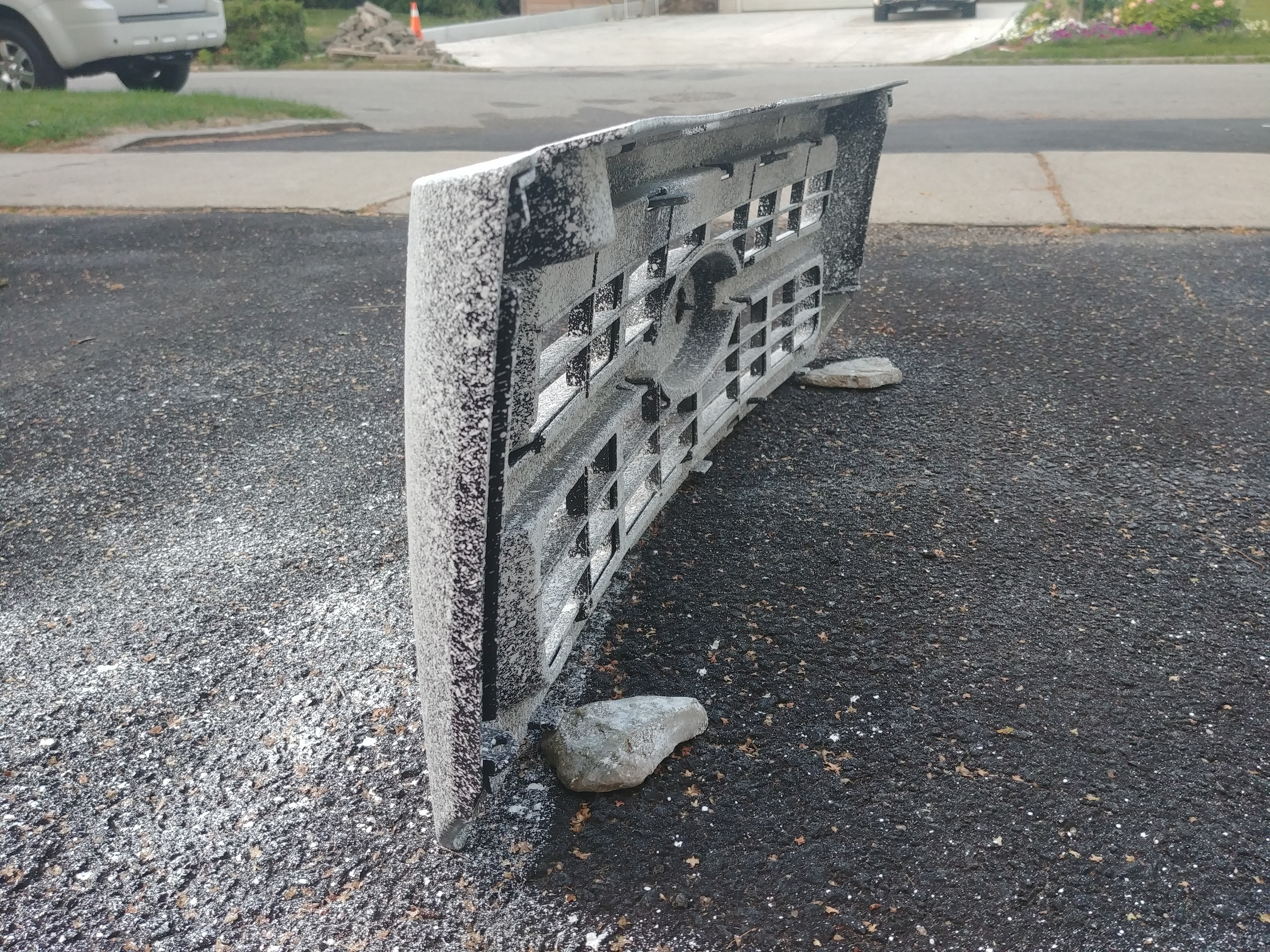

Photogrammetry was used to obtain an initial 3D Scan of factory part
I then reto-pologized the result of the scan within Blender 2.8. This generated a surface prime for detailing.

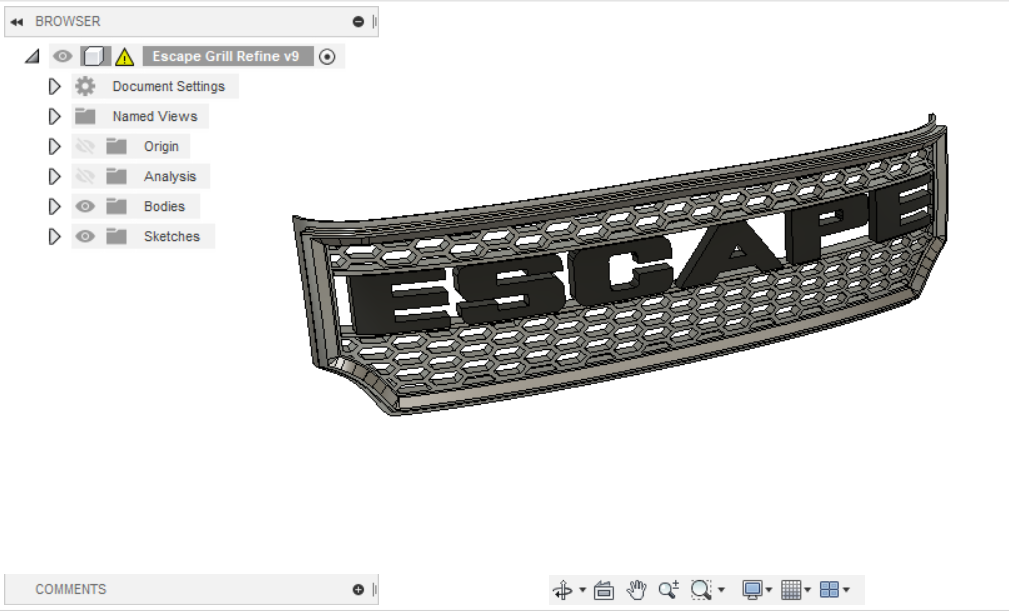

The detailing took place in Fusion 360 where it enabled me to cleanly solidify NURBS edges and begin creating the pattern and lettering.
This is a work in progress.
I then reto-pologized the result of the scan within Blender 2.8. This generated a surface prime for detailing.
The detailing took place in Fusion 360 where it enabled me to cleanly solidify NURBS edges and begin creating the pattern and lettering.
This is a work in progress.
In progress
Photogrammetry

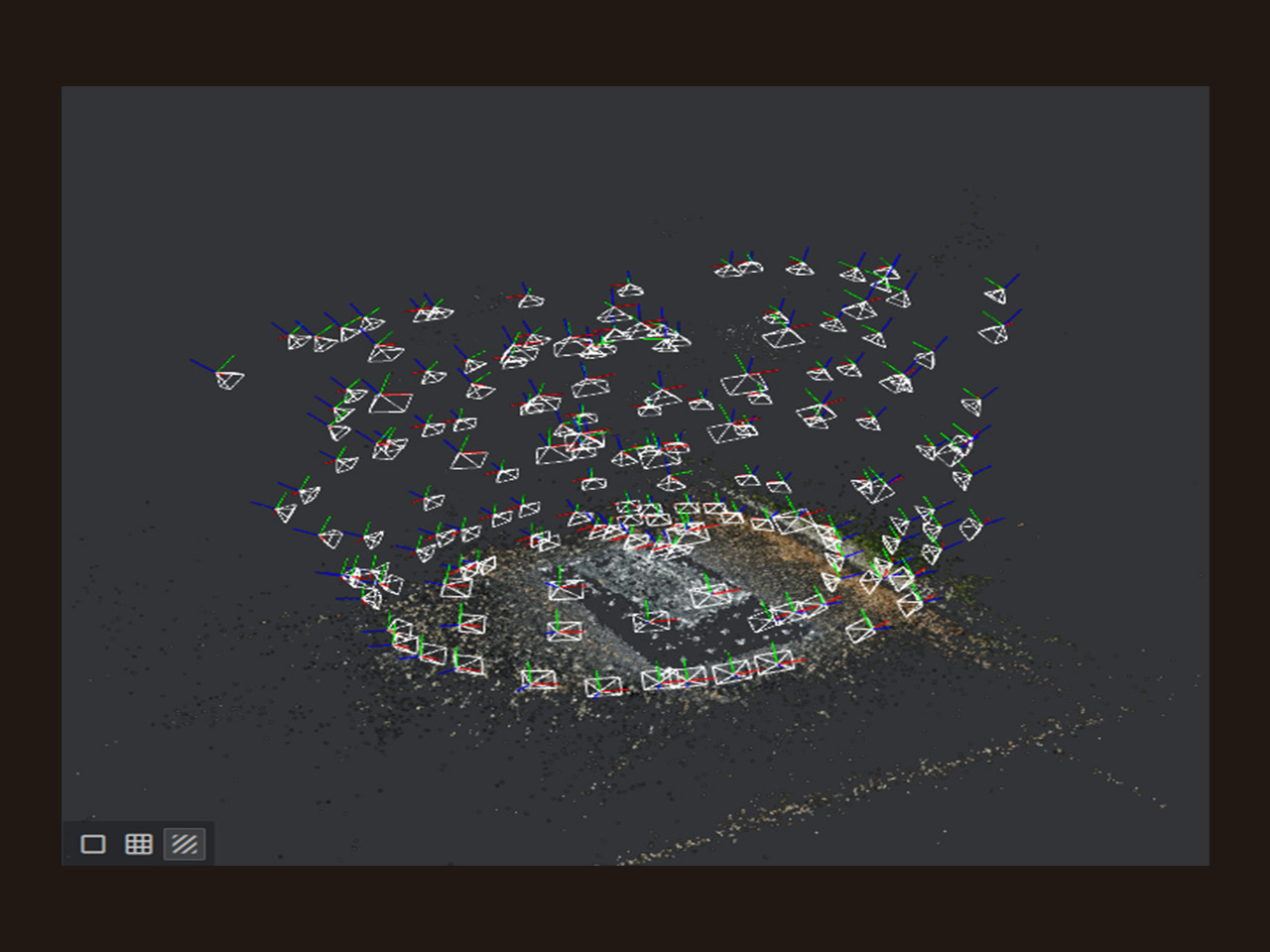

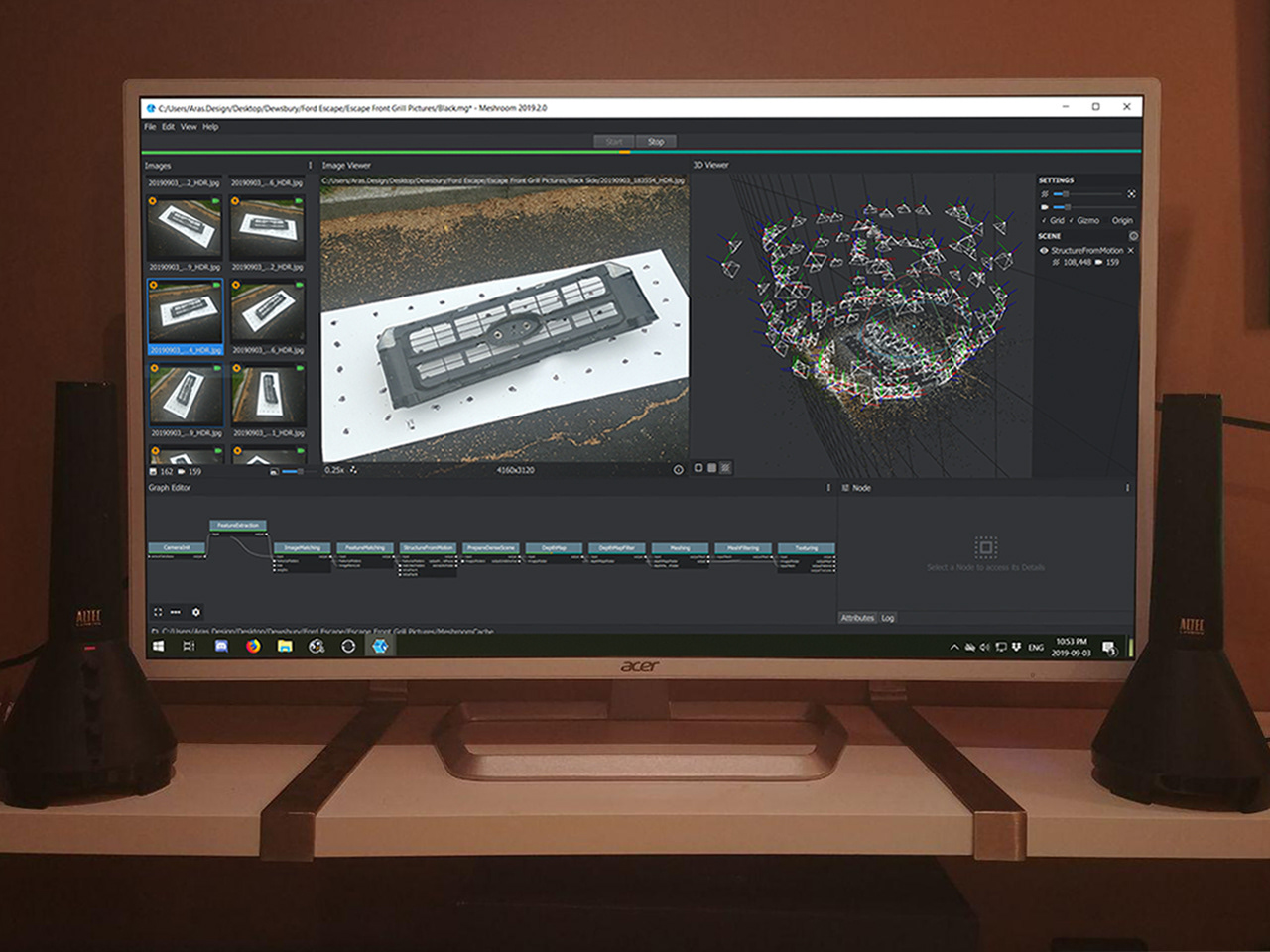

Point-cloud
Blender 2.8 Retop
Fusion 360 Detailing
